TTLock Wi-Fi gateway G2

Ref. GWLSRG2 ASIN B0HG7LPDZQ Model G2 EAN 3770029009458 Brand WizElek

TTLOCK APP ONLY – NOT COMPATIBLE WITH TUYA SMART / SMART LIFE: connects your TTLock Bluetooth locks (WizElek TTLock key safe, TTLock cylinders and locks) to the Internet through your 2.4 GHz Wi-Fi. Also works with TTHotel.
REMOTE UNLOCKING AND MANAGEMENT: unlock from anywhere, create or delete codes, cards and digital keys (eKeys) without travelling, check the lock status in real time. Access is granted and revoked in seconds.
ACCESS LOG AND NOTIFICATIONS: every opening appears instantly in the app, with the time and the credential used. Ideal for holiday lets, property managers, offices, practices and shops.
ALEXA AND GOOGLE HOME: control the lock by voice through your TTLock account. One gateway serves several locks of the same account within Bluetooth range (under 10 m, no thick wall, recommended).

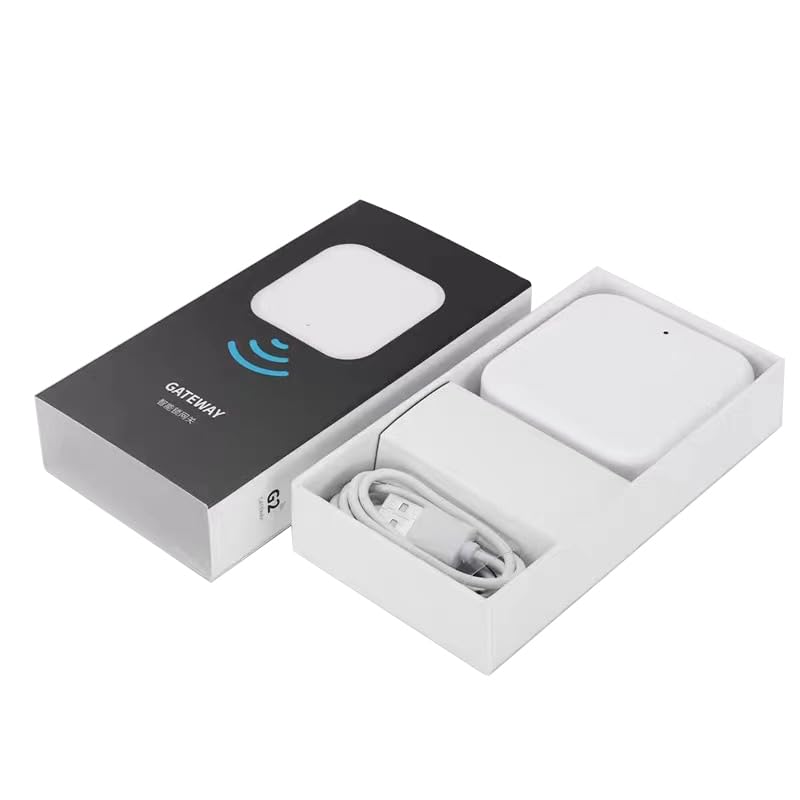

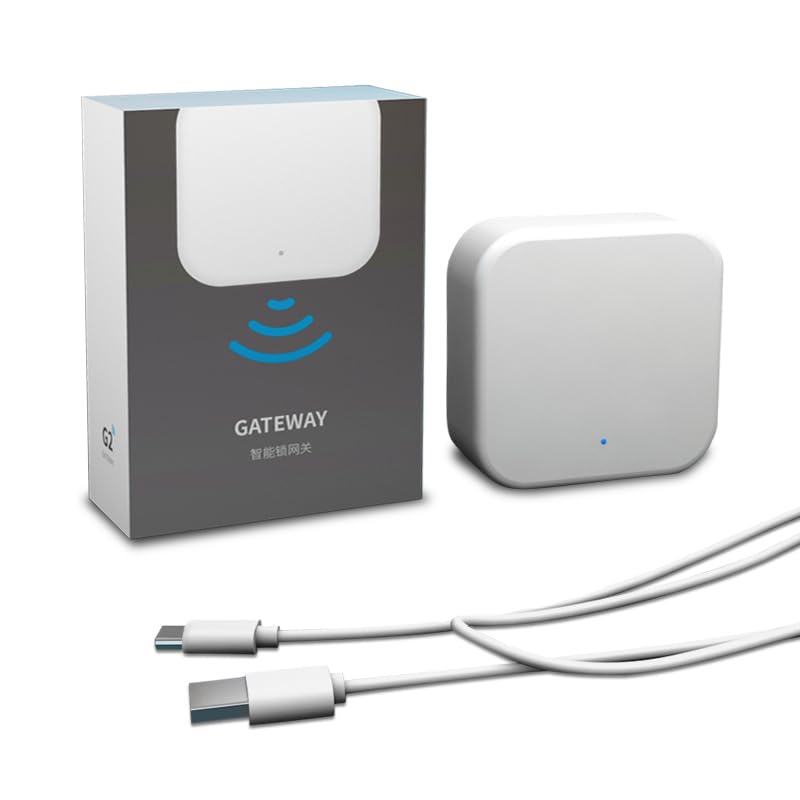

SET UP IN 2 MINUTES: plug in the supplied USB-C cable (5 V), add the gateway in the TTLock app and select your 2.4 GHz Wi-Fi (5 GHz not supported). Housing 70 × 70 × 26 mm, status LEDs, WizElek manual in 6 languages.

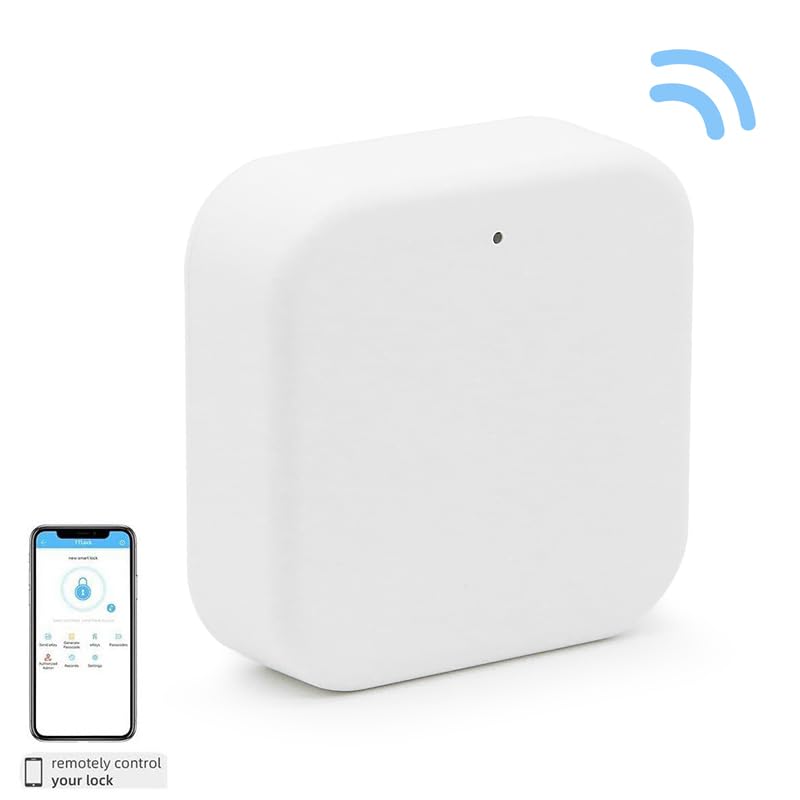

The TTLock Wi-Fi Gateway G2 puts your TTLock Bluetooth locks online. Without it, a TTLock lock can only be operated within Bluetooth range; with it, you unlock, lock and manage access from anywhere, on mobile data or from the other side of the world.

WHAT IT DOES

• Remote unlocking and locking from the TTLock app.

• Remote creation, editing and deletion of codes, RFID cards and digital keys (eKeys), with dates and time windows.

• Real-time access log and a notification at every opening.

• Voice control with Amazon Alexa and Google Home through the TTLock account.

• Compatible with TTHotel for managing several properties or rooms.

COMPATIBILITY

Every lock that works with the TTLock app: the WizElek key safe in its TTLock version, TTLock cylinders and locks of any brand. The gateway links automatically to the locks added to the same administrator account. It is not compatible with Tuya Smart / Smart Life products: for the WizElek key safe in its Tuya version, use the WizElek Tuya gateway.

SET-UP

1. Plug the gateway into a 5 V USB adapter with the supplied USB-C cable.

2. In the TTLock app, Gateway menu, add a G2 model while the red and blue LEDs flash alternately.

3. Select your 2.4 GHz Wi-Fi network and enter the password: steady blue LED, the gateway is online.

Place it within 10 m of the lock, ideally with no thick wall in between.

SPECIFICATIONS

Wi-Fi 802.11 b/g/n 2.4 GHz (5 GHz not supported) • Bluetooth to the lock • Power USB-C 5 V / 500 mA • Dimensions 70 × 70 × 26 mm • Red and blue status LEDs • Indoor use.

WizElek provides the manual in 6 languages (EN, FR, DE, IT, ES, NL), reachable through the QR code on the box, and supports the product from France.

Documentation & support

Manual, videos and quick start — the page printed on the packaging QR code.
