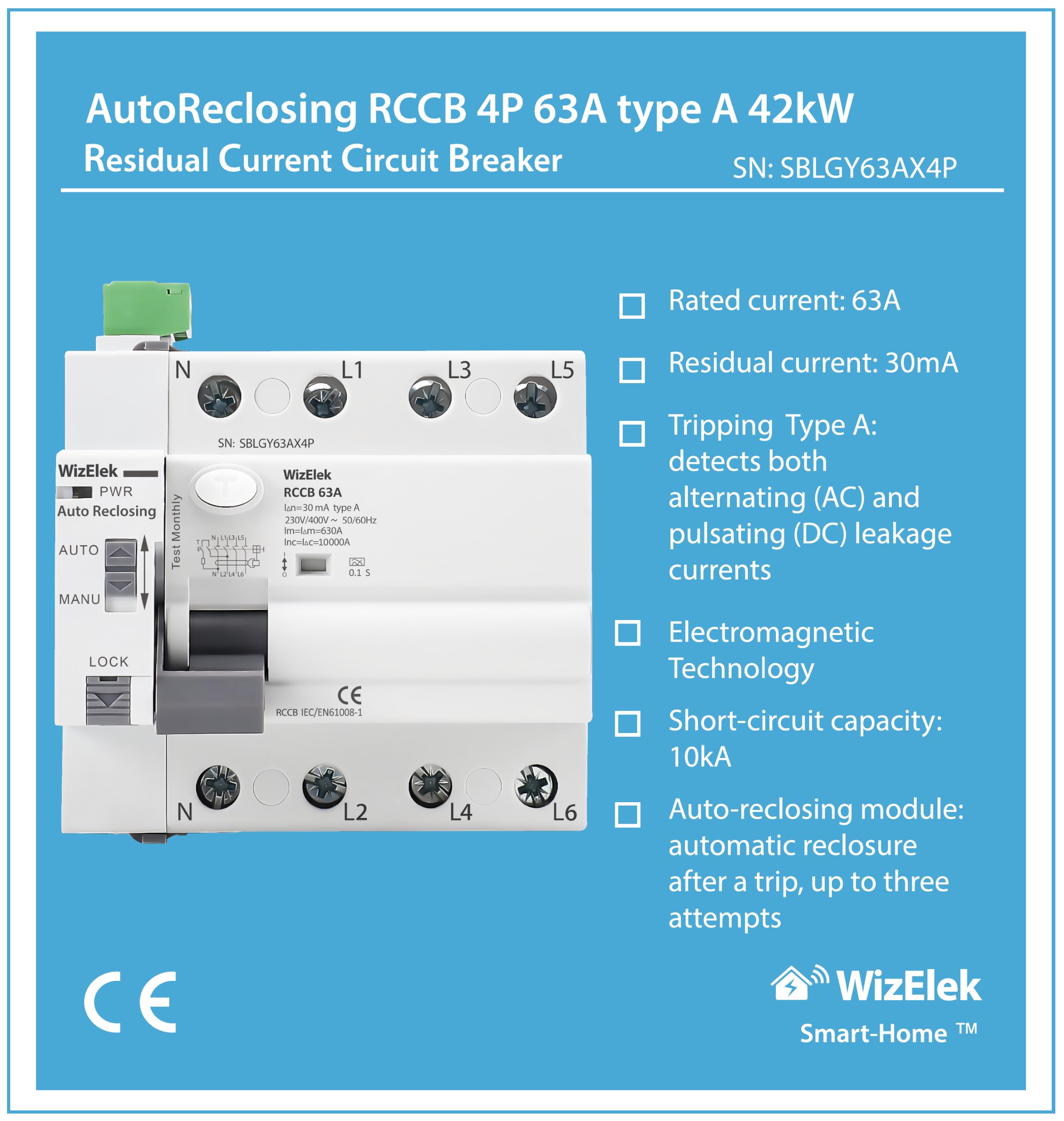

RCCB 4P 63 A 30 mA type A — auto-reclosing

Ref. SBLGY63AX4PASIN B0F45W2WZMEAN 3770029009311Brand Smart-Home

• Type A & AC residual current protectionThree-phase 4P 63 A – 30 mA RCCB compliant with EN 61008-1. Detects alternating (AC) and pulsating DC leakage currents to protect people and electrical installations.

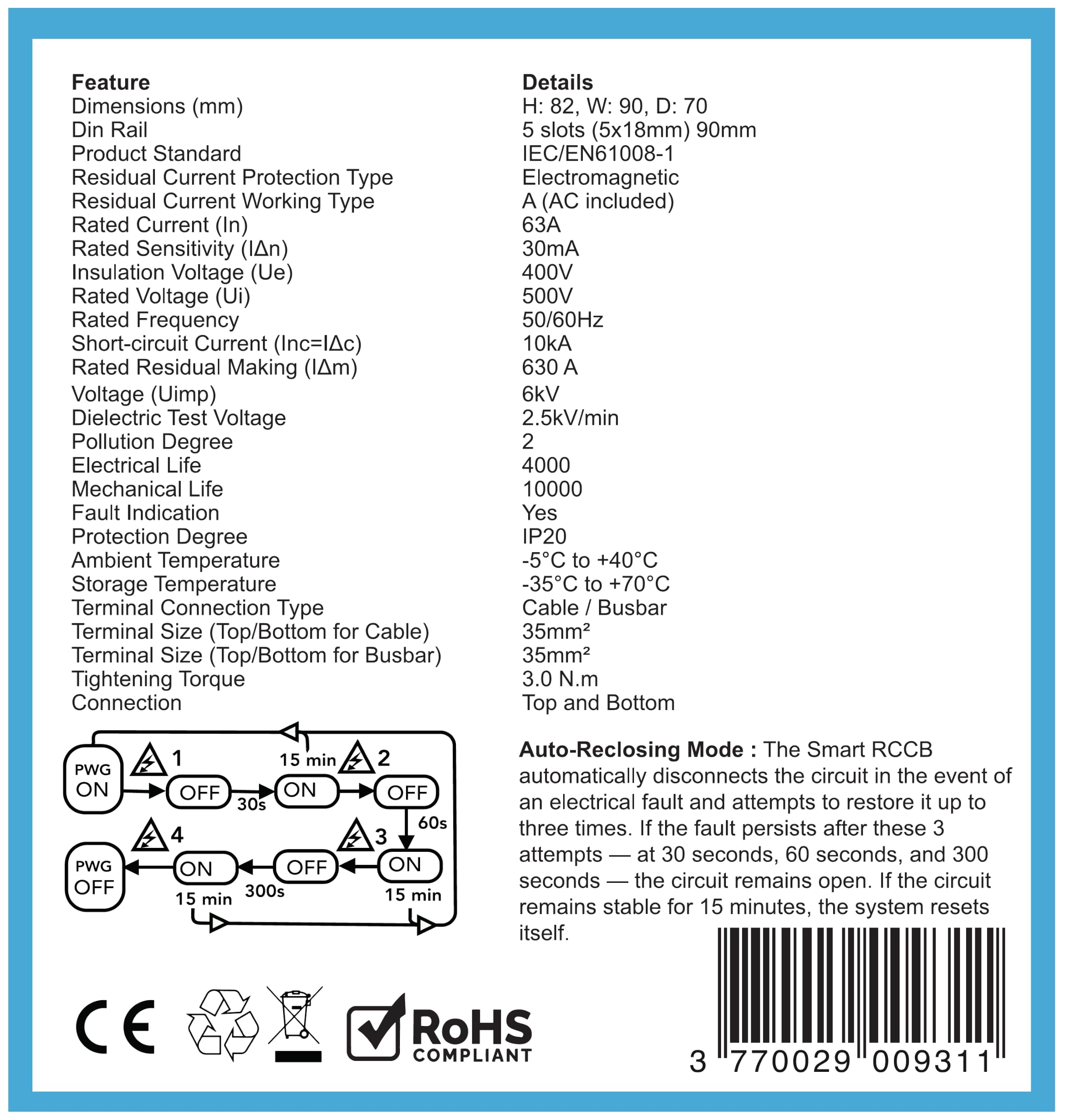

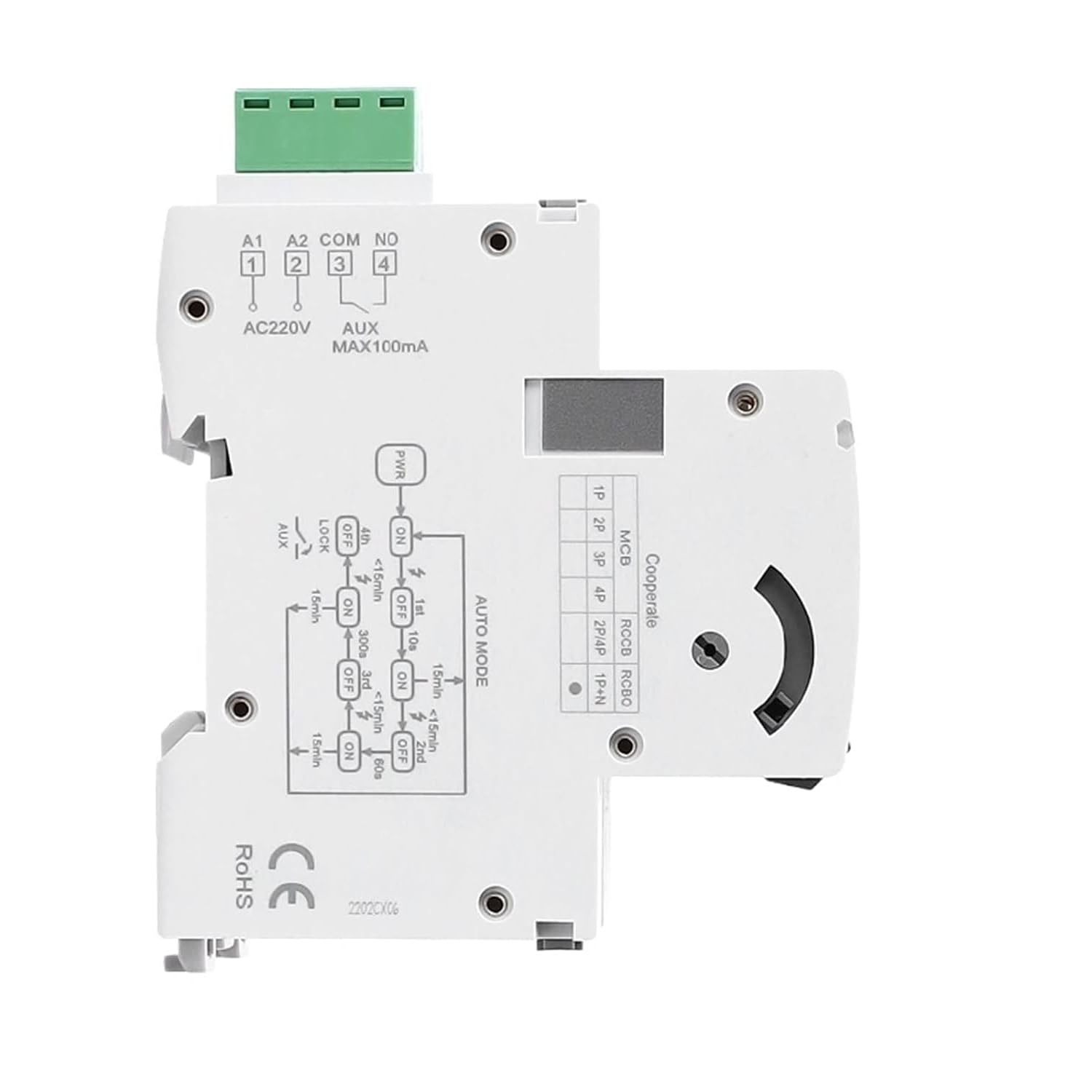

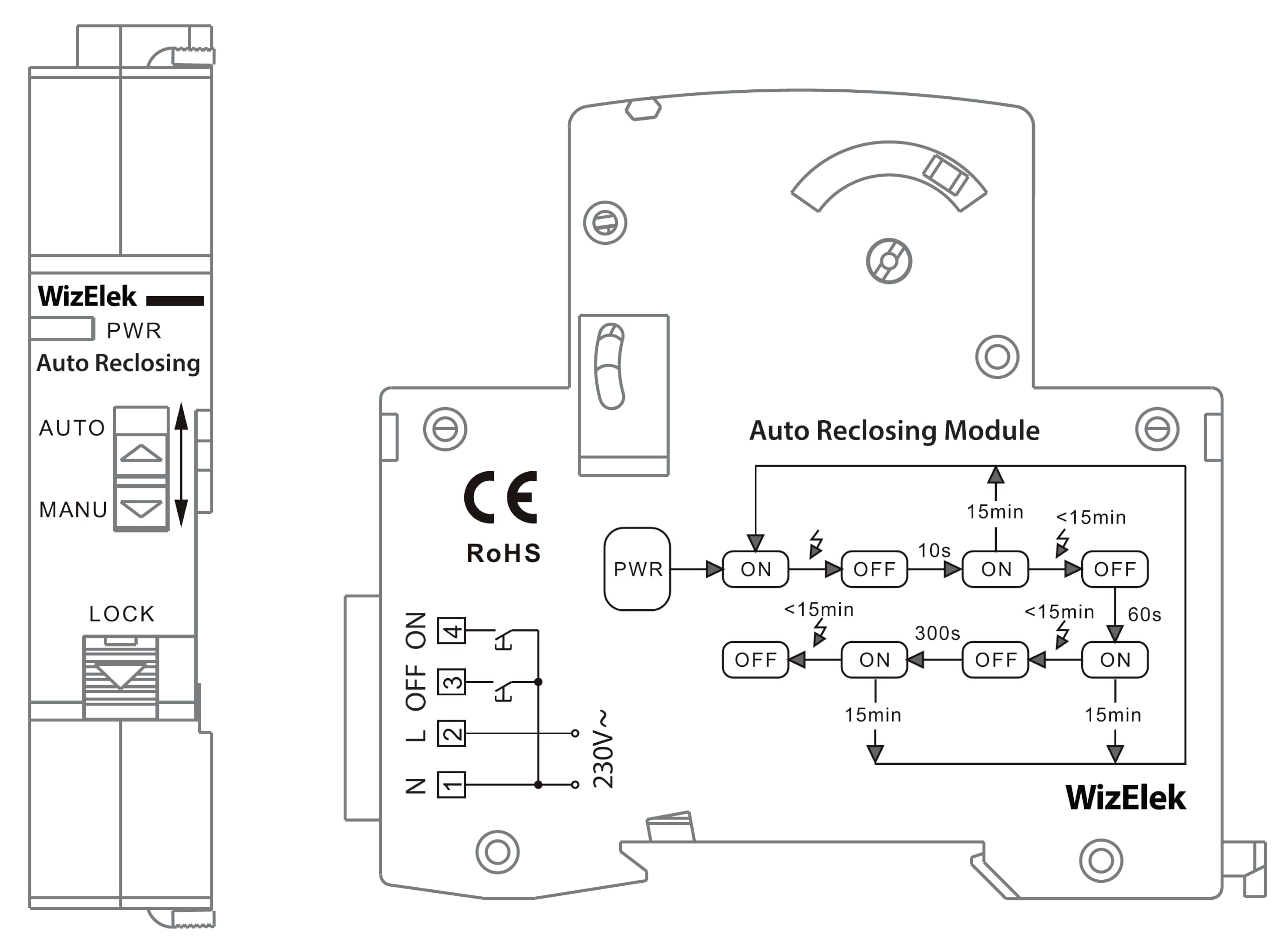

• Intelligent auto-reclosingUp to 3 automatic reclosing attempts after a trip, with progressive delays of 30 seconds, 60 seconds and then 300 seconds. The device stays open if the fault persists.
• 3 operating modesBuilt-in selector to choose between auto-reclosing, standard operation without automatic reclosing, or safety lock-out in the open position for maintenance and technical work.

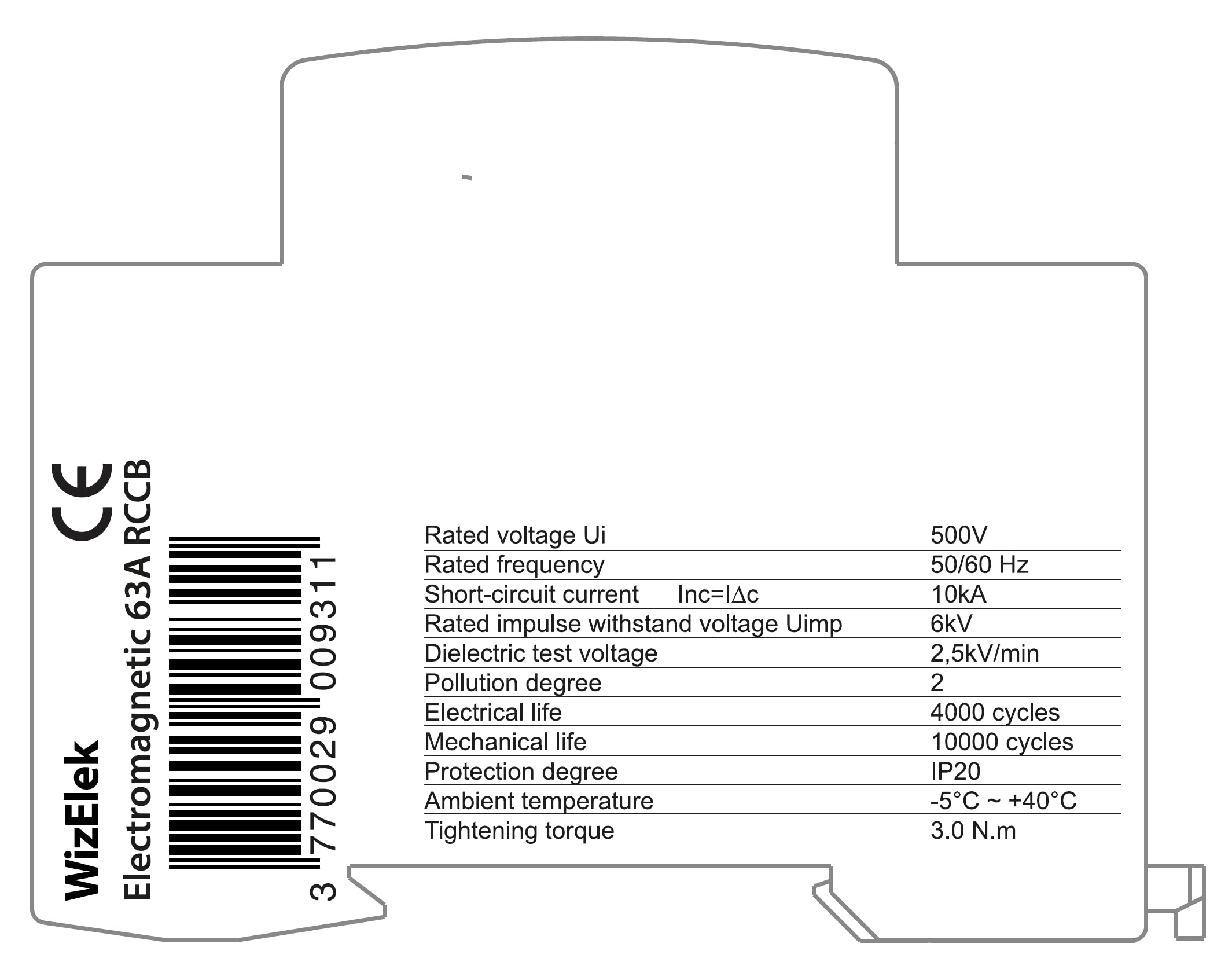

• Reinforced electrical characteristicsRated current In = 63 A, residual sensitivity IΔn = 30 mA, rated capacity IΔm = 630 A, rated voltage Ue = 230/400 V~, insulation voltage Ui = 500 V, impulse withstand Uimp = 6 kV, conditional short-circuit current Inc = IΔc = 10 kA.
• Complete three-phase protection5-module DIN format (4 poles), DIN-rail mounting, top and bottom screw terminals, built-in test button; suitable for three-phase installations up to 42 kW.
