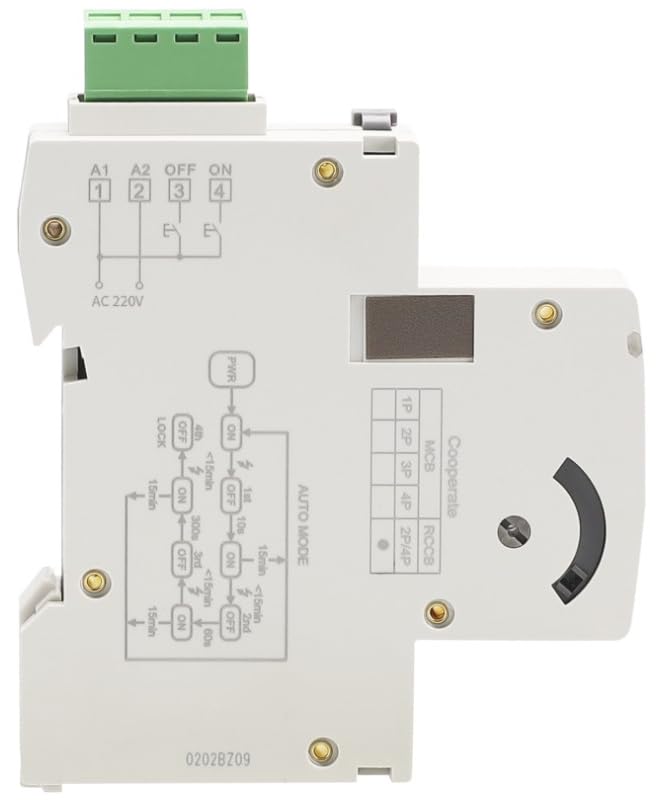

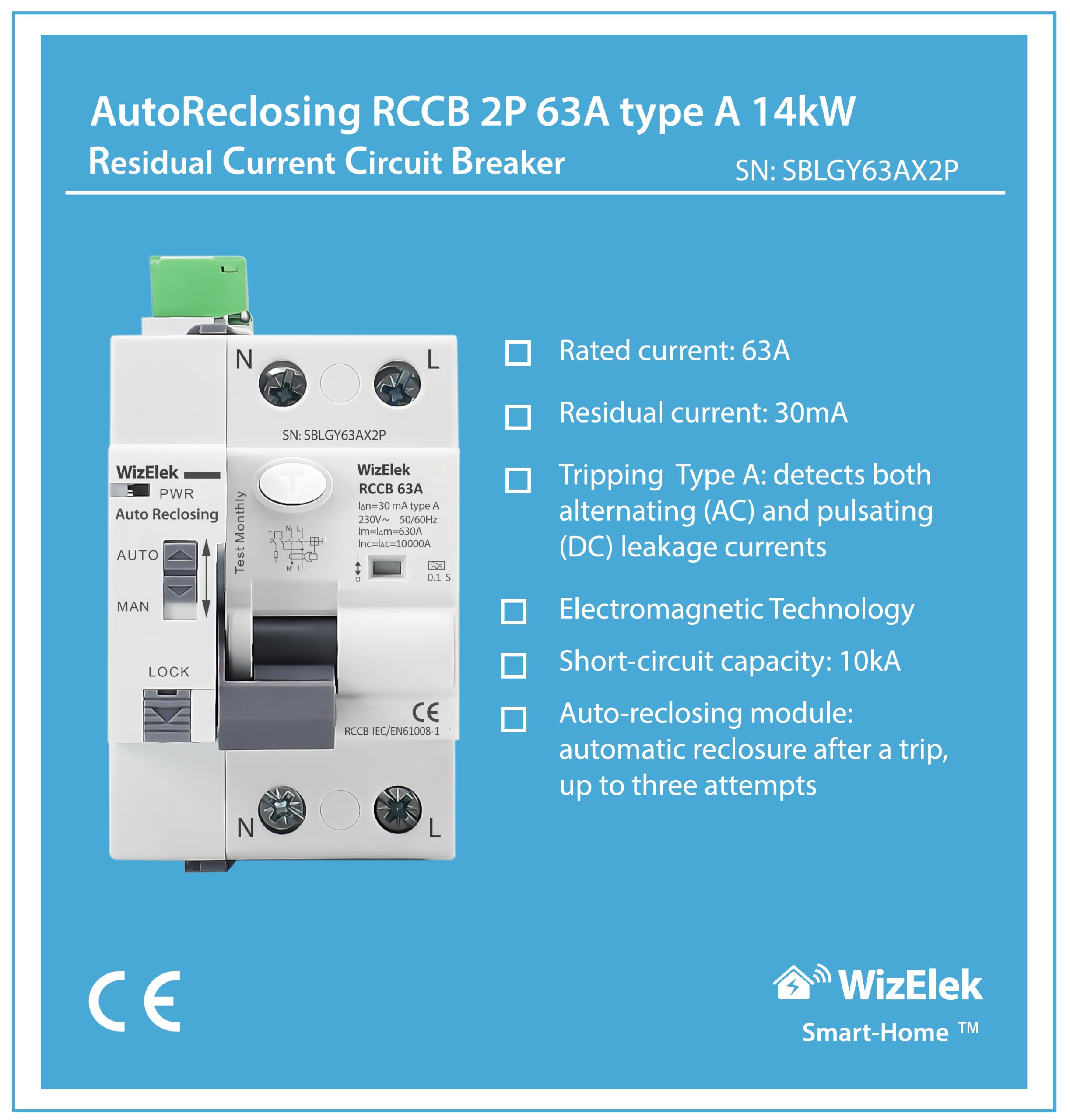

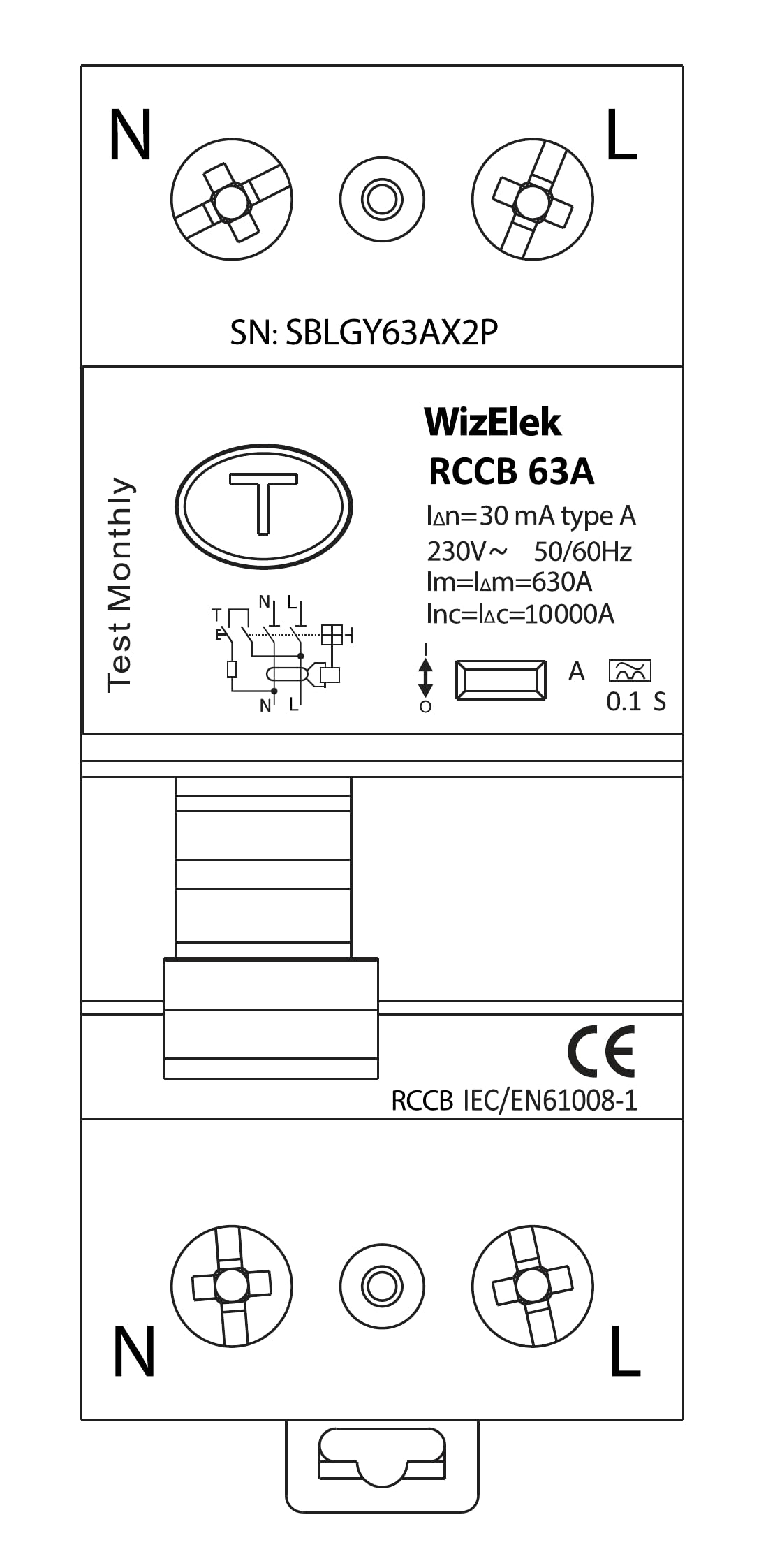

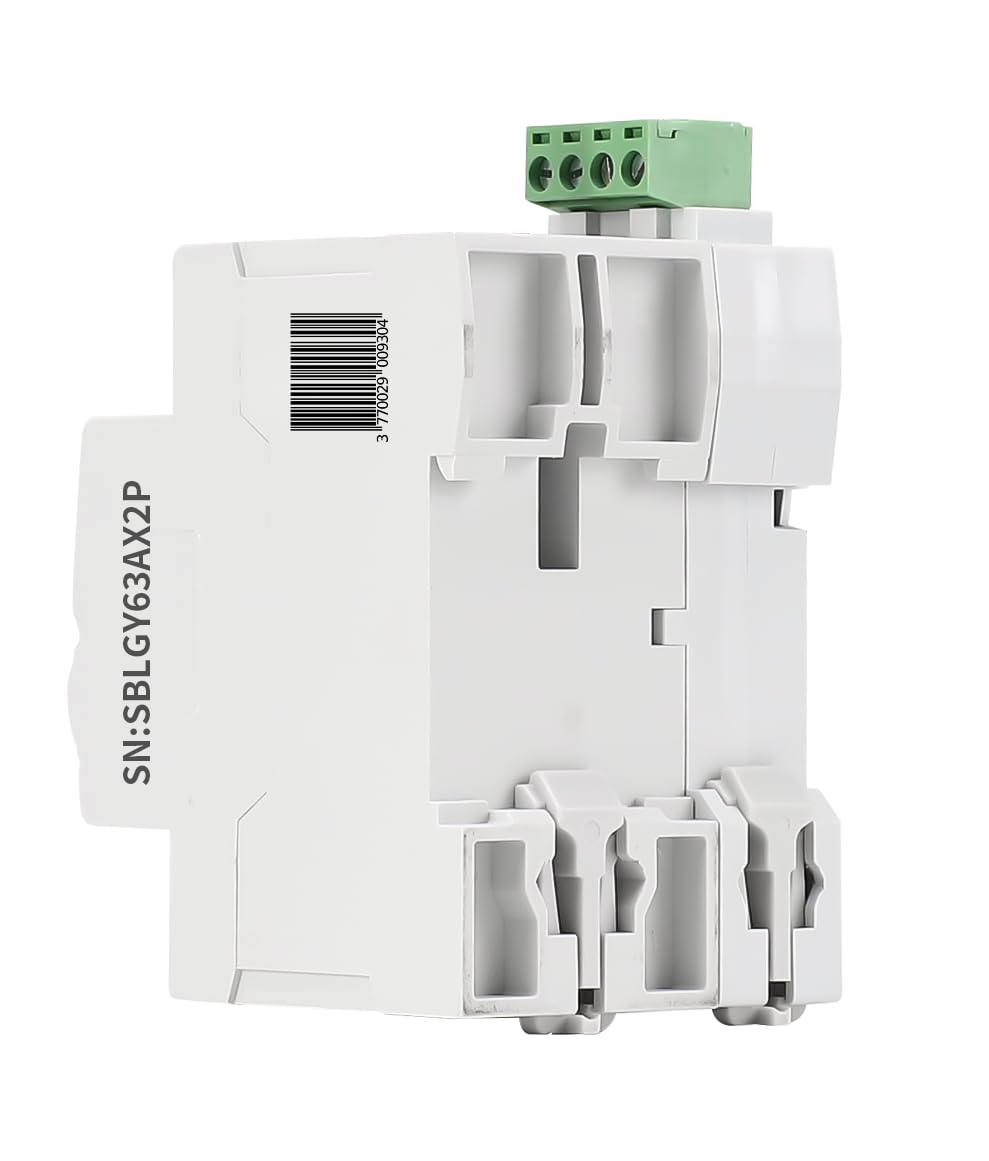

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 1

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 2

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 3

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 4

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 5

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 6

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 7

RCCB 2P 63 A 30 mA type A — auto-reclosing — photo 8

RCCB 2P 63 A 30 mA type A — auto-reclosing

Ref. SBLGY63AX2PASIN B0F464C3LDEAN 3770029009304Brand Smart-Home

Type A & AC residual current protectionSingle-phase 2P 63 A – 30 mA RCCB compliant with EN 61008-1. Detects alternating (AC) and pulsating DC leakage currents to protect people and electrical installations.
Intelligent auto-reclosingUp to 3 automatic reclosing attempts after a trip, with progressive delays of 30 seconds, 60 seconds and then 300 seconds. The device stays open if the fault persists.
3 operating modesBuilt-in selector to choose between auto-reclosing, standard operation without automatic reclosing, or safety lock-out in the open position for maintenance and technical work.

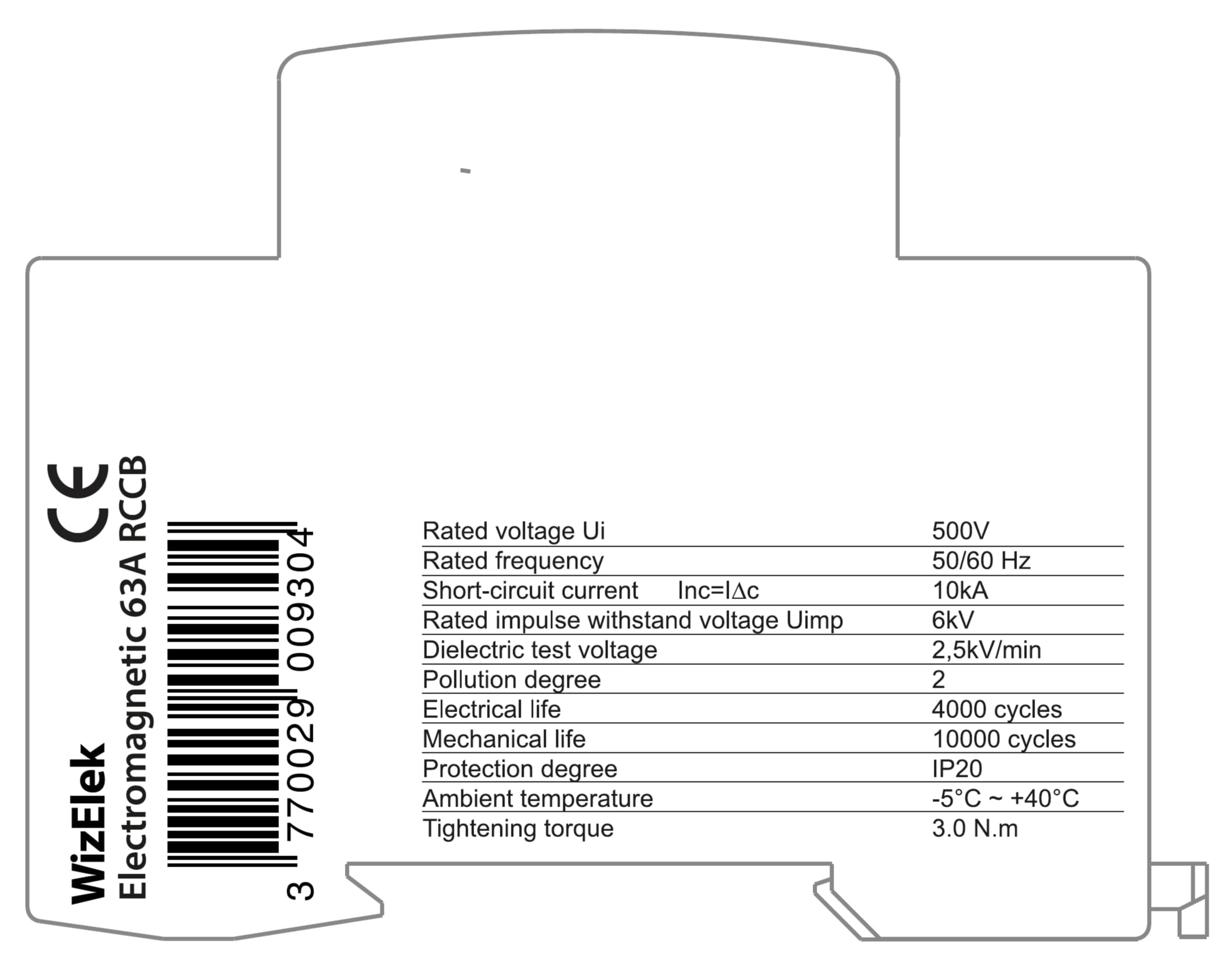

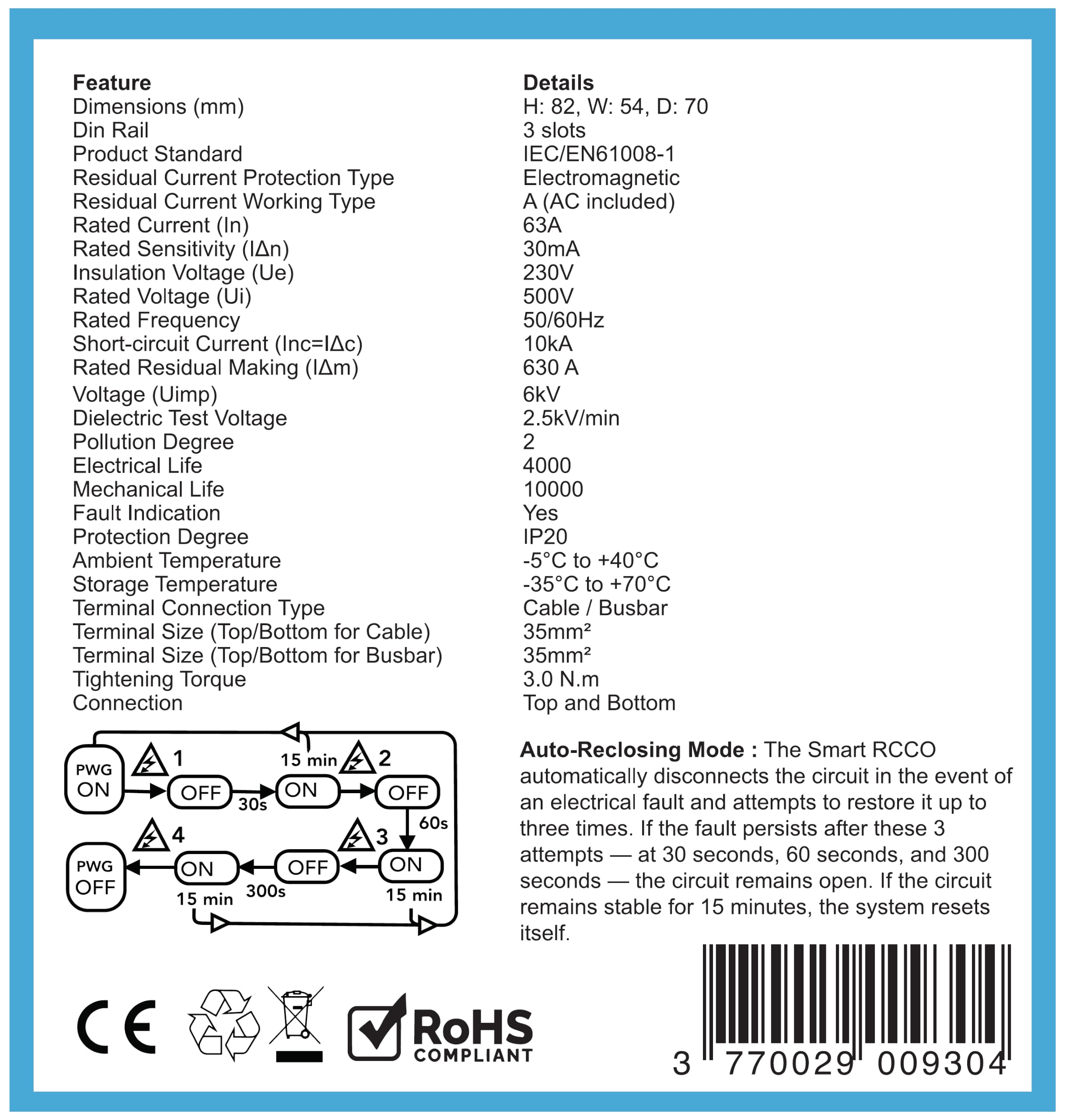

Reinforced electrical characteristicsRated current In = 63 A, residual sensitivity IΔn = 30 mA, rated capacity IΔm = 630 A, rated voltage Ue = 230 V~, insulation voltage Ui = 500 V, impulse withstand Uimp = 6 kV, conditional short-circuit current Inc = IΔc = 10 kA.
DIN-rail mountingCompact 3-module format, top and bottom screw terminals, built-in test button (monthly test recommended). Suitable for residential, commercial and industrial installations.

The Smart-Home SBLGY63AX2P is a single-phase 2P 63 A type A & AC 30 mA RCCB certified to EN 61008-1, designed to protect people against electric shock by detecting alternating and pulsating leakage currents. Its auto-reclosing function makes up to 3 progressive attempts (30 s, 60 s, 300 s) before keeping the circuit open in the event of a persistent fault. The 3-position Auto / Manual / Lock selector adapts its behaviour to operating or maintenance needs. Compact at 3 DIN modules, it carries 63 A (14 kW) with a 10 kA breaking capacity and 6 kV impulse withstand.

Documentation & support

Manuals and videos: see Manuals & videos.

Technical and compliance documentation on request: compliance@bga.systems.
